Nov 18, 2025
A failing driveway culvert can cause more than a muddy mess. When the pipe under your driveway can’t carry water the way it should, you get washouts, standing water, and real access issues—especially during heavy rain. In the Kansas City area, where clay soils and steep ditch lines are common, culvert problems show up fast.
This guide covers what it costs to replace a culvert, when you need a permit, and the mistakes we see most often in the field.
What a Driveway Culvert Actually Does
A culvert is the pipe that carries ditch water under your driveway instead of across it. It keeps your driveway from washing out, protects the ditch from erosion, and helps stormwater pass through safely.
A good culvert:
Moves water away from your road or driveway
Prevents erosion at the pipe’s inlet (where water enters) and outlet (where water exits)
Supports the driveway or roadway above it through proper base (rock foundation) and compaction (densifying soil to increase strength)

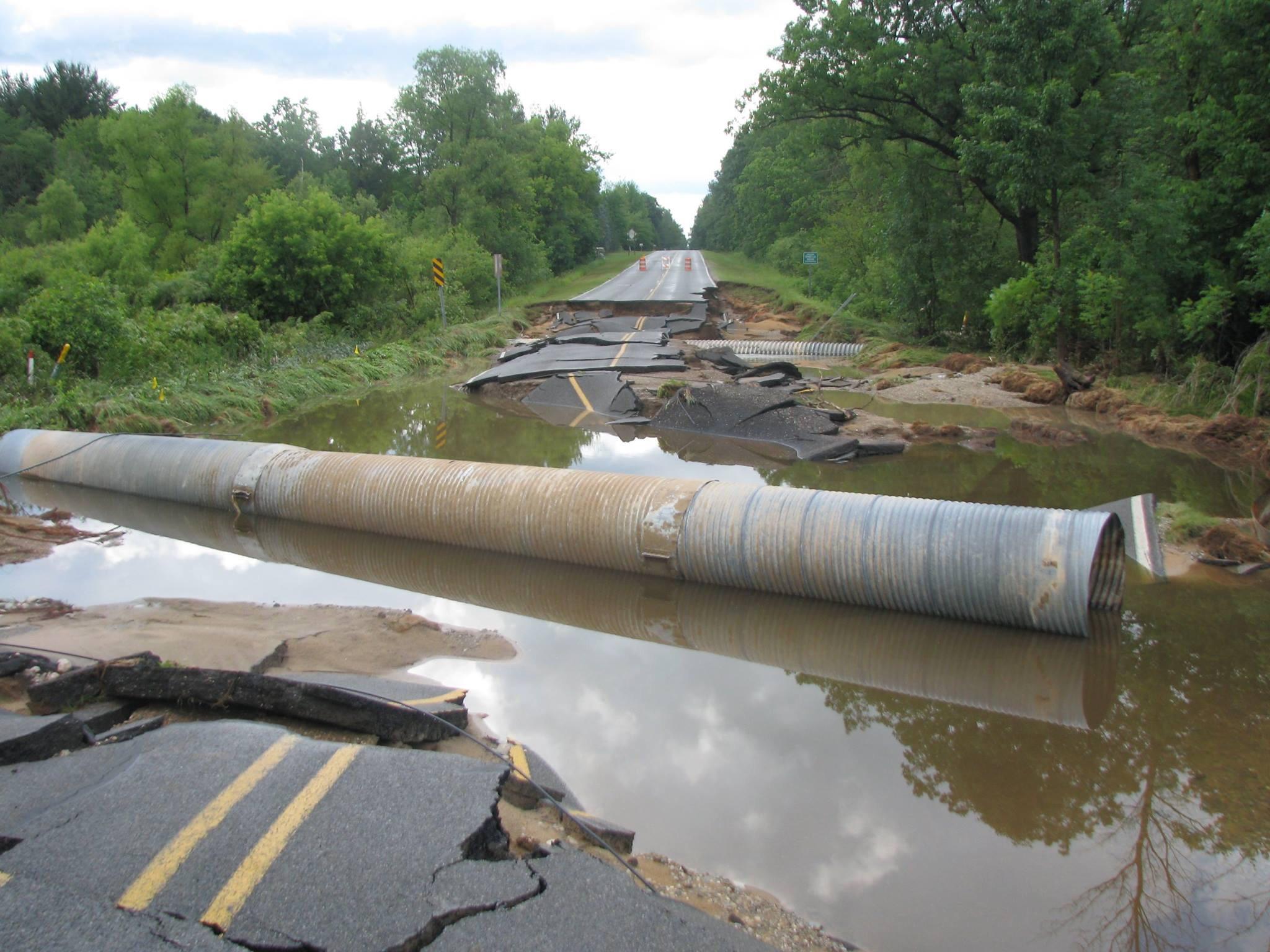

When the pipe collapses, clogs, or is undersized, water will find another path—usually the path you don’t want.
Signs Your Culvert Needs Full Replacement — Not Just a Clean-Out
Many homeowners think a quick clean-out will solve the problem. Sometimes it will. But if you’re seeing these signs, replacement is usually the better option:
Water is flowing over the driveway during moderate rain
Repeated washouts at the driveway edges
The pipe is crushed, rusted, or separated at the joints
Sinkholes or soft spots forming above the pipe
The outlet is buried, causing water to back up
The driveway keeps settling even after gravel is added
If your culvert is more than 20–25 years old, it may simply be at the end of its life.
Culvert Replacement Costs in the Kansas City Area
Culvert costs vary depending on pipe size, length, excavation, access, and driveway conditions. But most residential replacements in the KC metro fall into these ranges:
Typical Cost Ranges
Project Type | Typical Cost |
Small residential culverts (12–15") | $1,500–$3,000 |
Medium or long culverts (18–24"+) | $3,000–$7,500 |
Full driveway rebuild + drainage improvements | $7,500–$15,000+ |
Pricing depends on site conditions. A short site visit tells you where you fall.
What Drives the Final Price
1. Pipe diameter & length: Cities and counties often require 12–15" minimum diameter, but some ditches need 18–24"+ to handle peak flow.
2. Pipe material:
HDPE (plastic): durable, low maintenance
Corrugated metal (CMP): traditional choice; can rust over time
Concrete: long lifespan; heavy and requires more equipment
3. Excavation depth & ditch shape: Deeper pipes require more digging, haul-off, and backfill.
4. Bedding & compaction: Culverts need solid bedding and proper compaction (densifying the base in layers). Without it, the pipe settles and fails early.
5. Inlet/outlet protection: Riprap (large rock), headwalls, or concrete end sections prevent erosion—critical for long-term performance.
6. Additional driveway work: If your driveway base is already failing, it may need rebuilding while the culvert is open.
Permit Requirements for Culvert Replacement in Kansas City
If your driveway connects to a city street, county road, or state highway, your culvert sits in the public right-of-way (ROW). That almost always means you need a permit or approval before replacing it.
Typical Permit Requirements
Approval of pipe diameter and length
Material standards (HDPE, CMP, or concrete)
Proper slope and alignment with the ditch line
Inspection after installation
Different agencies—city public works, county road departments, MoDOT, or KDOT—set their own standards.
Who Pulls the Permit?
Property owners are typically responsible for owning and maintaining their driveway culvert, but the road authority—city, county, or state—sets the standards for how it must be installed. Because the culvert sits in the public right-of-way, the regulating agency often requires approval before work begins. Icon helps homeowners by coordinating with local agencies, confirming the required pipe size and materials, and making sure the installation meets all applicable standards.
Common Culvert Installation Mistakes (And How We Avoid Them)
Unfortunately, culvert failures are usually caused by installation errors—not the pipe itself. The most common:
1. Undersizing the Pipe: A 10" or 12" pipe may not move enough water in KC’s heavier storms. Undersized culverts back up fast.
2. Wrong Slope: If the inlet is higher than the outlet—or the slope is too flat—the pipe can’t drain properly.
3. Dropping the Pipe Without Bedding: A culvert set directly on mud or soft clay shifts over time. Bedding and shaping the trench prevent this.
4. Poor Backfill & Compaction: Loose fill settles, causing dips in the driveway and stress on the pipe.
5. No Inlet/Outlet Protection: Bare soil erodes quickly. We install riprap or concrete ends to prevent blowouts.
6. Not Extending the Culvert to Full Driveway Width: Too-short pipes create shoulder failures and unsafe driveway edges.
7. Skipping Permits: Unpermitted work in the ROW can be rejected by the city or county—leading to redo costs.
Repair vs. Full Replacement — How to Tell
You may only need a repair if:
The pipe is intact but clogged
Only the inlet is buried
There’s minor erosion at the outlet
You likely need a full replacement if:
The pipe is crushed, rusted, or separated
Water overtops your driveway
The driveway keeps failing or settling
The culvert is undersized for modern drainage standards
Not sure? A quick site inspection answers it. Schedule a KC-Area Assessment.
Why Work With a Grading Contractor Instead of a Landscaper
Replacing a culvert involves more than setting a new pipe in the ground. It requires proper grading, drainage planning, and building a stable base so the driveway doesn’t settle or fail later.
Grading contractors are equipped for this type of work. They can set accurate slopes, compact the base in layers, shape the ditch line correctly, and install inlet/outlet protection to prevent erosion. Landscapers may be able to place the pipe, but grading contractors focus on the underlying soil and drainage conditions that keep the culvert performing long-term.
Culvert Replacement Questions We Hear the Most
How do I know if my driveway culvert actually needs replacement?
A culvert likely needs replacement if it’s crushed, rusted through, separated at the joints, or no longer draining properly. Signs include water overtopping the driveway, repeated washouts, or soft spots forming above the pipe. An on-site inspection is the fastest way to confirm whether the issue is the pipe or the surrounding drainage.
Do I need a permit to replace a culvert in the Kansas City area?
Most driveways that connect to a city street, county road, or state highway require a permit because the culvert sits in the public right-of-way. Local agencies regulate the pipe size, material, slope, and installation method. We help determine what’s required and coordinate approvals when needed.
What size culvert should be used for a residential driveway?
The required diameter depends on the ditch depth, drainage flow, and local city or county standards. Many agencies have a minimum size, but larger pipes may be needed for heavier runoff or steeper ditches. A site assessment ensures the culvert is sized correctly for both the property and local regulations.
Which type of pipe works best for culvert replacement?
HDPE, corrugated metal, and concrete culverts are all common, and each performs differently based on soil conditions, flow, and agency preferences. HDPE is widely used for its durability, while metal and concrete may be required in certain right-of-way situations. The best choice depends on the site and the standards set by the road authority.
Can I replace a culvert myself, or should I hire a contractor?
DIY is possible, but most issues we see—poor slope, soft bedding, and inadequate compaction—come from improper installation. Because the work often falls inside the right-of-way and requires correct grading for drainage, many homeowners choose a contractor to ensure the culvert meets local requirements and won’t fail again.
